AISI 4140 Pipe

4140 Tube Stock, 4140 Seamless Pipe material supplier in India

AISI 4140 Tool Steel material at best price in India, AISI 4140 Steel Pipes, 4140 Alloy Steel Tubes, SAE 4140 Tubing, 4140 Grade material & 4140 Tubing Suppliers

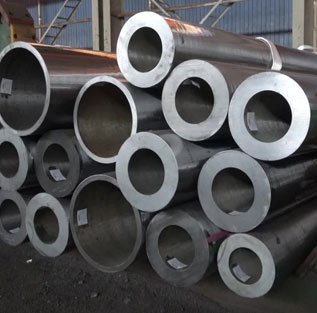

AISI 4140 Pipe

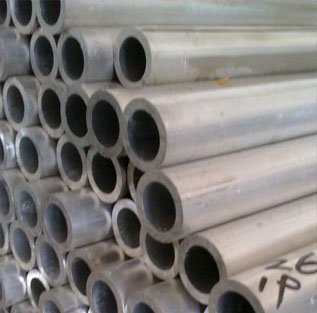

4140 Tubing

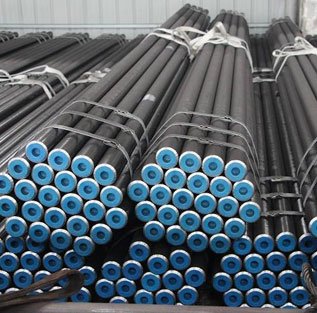

4140 Seamless Pipe

AISI 4140 is a low steel alloy that consists of manganese, molybdenum and chromium. AISI 4140 equivalent material & EN grades are EN# is 1.7223, EN name is 42CrMo4, DIN is 41CrMo4, BS 970 is 708M40, UNI is 41CrMo4 and JIS is SCM 440. There are very few grades of steel that have the capacity to match the usefulness and the versatility of AISI 4140. Material properties of AISI 4140 include it having superb ductility, superior toughness and in tempered condition or quenched condition, it shows excellent wear resistance. AISI 4140 has a Density of 0.284 lb/in³ (7.85 g/cm3) and it has a Melting Point of 2580 °F (1416 °C).

4140 steel uses are many because of its properties and characteristics. AISI 4140 has high impact resistance, high fatigue strength, superb torsional strength, excellent toughness and very good abrasion. AISI 4140 has many applications such as connecting rods, steel ejectors, sprockets, torsion bars, tool holders, steel couplings, pump shafts, mold bases, holder blocks, forks, pinions, chuck bodies, drill collars, bolsters, motor shafts, crow bars, strippers, valves, fixtures, boring bars, lathe spindles, reamer bodies, tool holders, rams, conveyor pins & rolls, crankshafts, steel collets, milling spindles, steel conveyors and rolls, etc.

AISI 4140 steel tube corrosion resistance is excellent because of the presence of molybdenum and chromium in it. The molybdenum in AISI 4140 is very useful as it helps immensely in the resistance of corrosion due to chlorides. The manganese that is present in AISI 4140 is extremely helpful as it acts like a deoxidizer and it also increases the hardenability of the material. Plus, the manganese that is present in AISI 4140 combines with sulfur and improves the machinability of the material, also making the process of carburizing much more effective.

Nirmaan Steel is RINA approved supplier & exporter of AISI 4140 Pipe. We are stockist & distributor of 4140 Pipe material & 4140 Seamless Pipe. Nirmaan Steel is PED approved manufacturer of AISI 4140 Tube & AISI 4140 low alloy steel pipe suppliers.

Nirmaan Steel is supplier of 4140 Steel Tubing. We are stocking distributor of Jindal, MSL & ISMT for AISI 4140 Square Pipe & AISI 4140 Alloy Steel Tubes. We offer best price of AISI 4140 SMLS Steel Pipe in India & Europe. Special price offer on AISI 4140 Rectangular Pipe. High Pressure 4140 Tubing are available in more than 60 types of thickness & sizes. Buy Sch40 4140 Tube Stock at best price. Compare our Alloy Steel AISI 4140 Tubes price with AISI 4140 Pipes price in China. Our Dealers & Distributors in India arrange complete range of AISI 4140 Seamless Pipe in shortest time as well at best price.

Table of contents
  • SAE 4140 Pipe Price in India
  • AISI 4140 Steel Pipe Specification
  • 4140 Tool Steel Pipe Equivalent
  • 4140 Alloy Steel Pipe Weight
  • 4140 Pipe Welding Procedure
  • 4140 Grade Pipe Weight Calculator
  • Difference Between Low-Alloy Steel & High-Alloy Steel

Looking to buy Carbon steel pipe manufacturers in India? Carbon steel pipe suppliers?

Check Today’s price of Carbon steel pipe manufacturers in India

AISI 4140 Pipe Price in India

Size”

MSL Make

ISMT make

JSL Make

1/2″

1,402.94

1,395.15

1,410.74

3/4″

1,169.12

1,161.32

1,176.91

1″

1,013.24

1,005.44

1,021.03

1.25″

966.47

958.68

974.26

1.5″

857.35

849.56

865.15

Please note: All Above Prices are USD $/Ton. All price applicable for SCH 40, SCH 60, SCH 80 & SCH XS Pipe.

4140 Steel Pipe Specification

AISI 4140 Pipe Standard

AISI 4140, ASTM A519 (with IBR Test Certificate)

AISI 4140 Pipe Size

1/2” NB to 36” NB

AISI 4140 Pipe Thickness

3-12mm

AISI 4140 Pipe Schedules

SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules

AISI 4140 Pipe Origin

European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material)

AISI 4140 Pipe Tolerance

Cold drawn pipe: +/-0.1mm

Cold rolled pipe: +/-0.05mm

Craft

Cold rolled and Cold drawn

AISI 4140 Pipe Type

Seamless / ERW / Welded / Fabricated

AISI 4140 Pipe available in Form of

Round, Square, Rectangular, Hydraulic Etc.

AISI 4140 Pipe Length

Standard

Double &

In Cut length also.

AISI 4140 Pipe End

Plain End, Beveled End, Treaded

Specialized in

Large Diameter AISI 4140 Pipe

Additional Testing

NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc.

Application

Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service

AISI 4140 Tool Steel Pipe Equivalent

Standard/ Grade

UNS

Temper

Specification

AISI 4130 Alloy Steel

UNS G41300

N

MILT6736, AMS6360, AMS6371

AISI 4340 Alloy Steel

UNS G43400



AISI 4140 Alloy Steel

UNS G41400

A, N, T

AMS6381

AISI 8620 Alloy Steel

UNS G86200



15CDV6



T980, T1080

AIR9160C, 1.7734.5, 1.7734.6

4140 Alloy Steel Pipe chemical composition

A519 4140 Alloy Steel Seamless Pipe Chemical Composition

Chemical composition % of A519 4140 Alloy Steel Seamless Pipe

ElementContent (%)
Iron, Fe96.785 – 97.77
Chromium, Cr0.80 – 1.10
Manganese, Mn0.75 – 1.0
Carbon, C0.380 – 0.430
Silicon, Si0.15 – 0.30
Molybdenum, Mo0.15 – 0.25
Sulfur, S 0.040
Phosphorous, P 0.035

SAE 4140 Pipe mechanical properties

Physical Properties A519 4140 Grade Seamless Pipe

The following table shows the physical properties of AISI 4140 alloy steel.

PropertiesMetricImperial
Density
7.85 g/cm3
0.284 lb/in³
Melting point
1416°C
2580°F



Mechanical Properties of A519 4140 Alloy Steel Seamless Pipe and Tubes

The mechanical properties of AISI 4140 alloy steel are outlined in the following table.

Properties

Metric

Imperial

Tensile strength

655 MPa

95000 psi

Yield strength

415 MPa

60200 psi

Bulk modulus (typical for steel)

140 GPa

20300 ksi

Shear modulus (typical for steel)

80 GPa

11600 ksi

Elastic modulus

190-210 GPa

27557-30458 ksi

Poisson’s ratio

0.27-0.30

0.27-0.30

Elongation at break (in 50 mm)

25.70%

25.70%

Hardness, Brinell

197

197

Hardness, Knoop (converted from Brinell hardness)

219

219

Hardness, Rockwell B (converted from Brinell hardness)

92

92

Hardness, Rockwell C (converted from Brinell hardness. Value below normal HRC range, for comparison purposes only)

13

13

Hardness, Vickers (converted from Brinell hardness)

207

207

Machinability (based on AISI 1212 as 100 machinability)

65

65

AISI 4140 Pipe Schedule Chart & AISI 4140 Pipe weight

Welded and seamless AISI 4140 Pipe

AISI 4140 Pipe Dimensions and weights section modulus and gallons capacity per linear foot

Size NPS

Pipe O.D.

Wall Thickness

Pipe I.D.

Weight per Foot

Standard to XXHY

Schedule pipe#

Section Modulus

Gallon Capacity Per Linear Foot

1/2

0.84

0.109

0.622

0.85

STD

40

.0407

.0158



0.147

0.546

1.09

XHY

80

.0478

.0122



0.188

0.464

1.31



160

.0528

.0088



0.294

0.252

1.72

XXHY



.0577

.0026

3/4

1.05

0.113

0.824

1.13

STD

40

.0705

.0277



0.154

0.742

1.48

XHY

80

.0853

.0225



0.219

0.612

1.95



160

.1006

.0153



0.308

0.434

2.44

XXHY



.1103

.0077

1

1.315

0.133

1.049

1.68

STD

40

.1328

.0449



0.179

0.957

2.17

XHY

80

.1606

.0374



0.250

0.815

2.85



160

.1904

.0271



0.358

0.599

3.66

XXHY



.2136

.0146

1 1/4

1.66

0.140

1.380

2.27

STD

40

.2346

.0777



0.191

1.278

3.00

XHY

80

.2913

.0666



0.250

1.160

3.77



160

.3421

.0549



0.382

0.896

5.22



.4110

.0328

1 1/2

1.90

0.145

1.610

2.72

STD

40

.3262

.1058



0.200

1.500

3.63

XHY

80

.4118

.0918



0.281

1.338

4.86



160

.5079

.0730



0.400

1.100

6.41



.5977

.0494

2

2.375

0.109

2.157

2.64



10

.4205

.1898



0.154

2.067

3.66

STD

40

.5606

.1743



0.218

1.939

5.03

XHY

80

.7309

.1534



0.250

1.875

5.68



.8045

.1434



0.281

1.813

6.29



.8666

.1344



0.344

1.687

7.47



160

.9806

.1161



0.436

1.503

9.04

XXHY



1.1043

.0922

2 1/2

2.875

0.120

2.635

3.53



10

.6870

.2833



0.203

2.469

5.80

STD.

40

1.0640

.2487



0.216

2.443

6.14



1.1169

.2435



0.250

2.375

7.02



1.2468

.2301



0.276

2.323

7.67

XHY

80

1.3386

.2202



0.375

2.125

10.02



160

1.6371

.1842



0.552

1.771

13.71

XXXHY



1.9971

.1280

3

3.50

0.120

3.260

4.34



1.0411

.4336



0.156

3.188

5.58



1.3122

.4147



0.172

3.156

6.12



1.4265

.4064



0.188

3.124

6.66



1.5342

.3984



0.216

3.068

7.58

STD.

40

1.7241

.3840



0.250

3.000

8.69



1.9372

.3672



0.281

2.938

9.67



2.1207

.3521



0.300

2.900

10.26

XHY

80

2.2253

.3431



0.438

2.624

14.34



160

2.8774

.2811



0.600

2.300

18.6

XXHY



3.4243

.2158

3 1/2

4.0

0.120

3.760

4.98



10

1.3776

.5768



0.226

3.548

9.12

STD.

140

2.3939

.5136



0.250

3.500

10.02



2.6001

.4998



0.281

3.438

11.17



2.8562

.4821



0.318

3.364

12.52

XHY

80

3.1400

.4617



0.636

2.728

22.87

XXHY



4.8795

.3085

4

4.5

0.120

4.260

5.62



10

1.7612

.7404



0.156

4.188

7.24



2.2354

.7156



0.188

4.124

8.67



2.6296

.6942



0.203

4.094

9.32



2.8173

.6838



0.219

4.062

10.02



3.0184

.6725



0.237

4.026

10.80

STD.

40

3.2145

.6613



0.250

4.000

11.36



3.3611

.6528



0.281

3.938

12.67



60

3.7021

.6326



0.312

3.876

13.97



4.0273

.6126



0.337

3.826

15.00

XHY

80

4.2713

.5972



0.438

3.624

19.02



120

5.1790

.5361



0.531

3.438

22.53



160

5.8997

.4822



0.674

3.152

27.57

XXHY



6.7927

.4054

5

5.563

0.188

5.187

10.80



4.1161

1.0979



0.219

5.125

12.51



4.7279

1.0716



0.258

5.047

14.63

STD.

40

5.4500

1.0391



0.281

5.001

15.87



5.8644

1.0204



0.312

4.939

17.51



6.4074

.99647



0.344

4.875

19.19



6.9358

.9696



0.375

4.813

20.80

XHY

80

7.4300

.9449



0.500

4.563

27.06



120

9.2534

.8495



0.625

4.313

32.99



160

10.7976

.7590



0.750

4.063

38.59

XXHY



12.0954

.6734

6

6.625

0.109

6.407

7.59



5

3.5769

1.6748



0.134

6.357

9.30



10

4.3475

1.6488



0.156

6.313

10.79



5.0107

1.6260



0.188

6.249

12.94



5.9351

1.5937



0.203

6.219

13.94



6.3804

1.5780



0.219

6.187

15.00



6.8261

1.5620



0.250

6.125

17.04



7.6905

1.5306



0.280

6.065

18.99

STD.

40

8.4958

1.5008



0.312

6.001

21.06



9.3416

1.4688



0.344

5.937

23.10



10.111

1.4391



0.375

5.875

25.05



10.893

1.4082



0.432

5.761

28.60

XHY

80

12.224

1.3541



0.500

5.625

32.74



13.711

1.2909



0.562

5.501

36.43



120

14.9806

1.2346



0.625

5.375

40.09



16.1821

1.1787



0.719

5.187

45.39



160

17.8243

1.0977



0.864

4.897

53.21

XXHY



20.025

.9784



1.000

4.625

60.13



21.7719

.8727



1.125

4.375

66.14



23.1237

.7809

Carbon steel is a large category of steel that encompasses many varying chemical compositions. Each type of carbon steel requires different considerations when welding. For example if you choose Low carbon steel to weld which is typically the most readily welded steel in a room temperature environment. These low carbon steel suitable for welding include C1008, C1018, A36, A1011 and A500. Medium carbon steel such as C1045 typically requires preheat and post-heat treatment to avoid weld cracking. High carbon steel is even more prone to weld cracking than the other two groups of carbon steel. Welding high carbon steel will most likely require very thorough preheating and post-heating processes to avoid this. It could also require special welding filler metals.

AISI 4140 Pipe welding is used extensively for pipe welding, aerospace, aviation, biomedical implants, fabrication of race cars, choppers, etc.

Client Reference and Applications

Our AISI 4140 Pipe are suitable for Aerospace, Plant manufacturing, Machine engineering, Power generation and Nuclear Power Plant etc. We are supplying high quality AISI 4140 Tool Steel to our clients globally.
